NRC : Benchmark n°13
(NUREG/CR-6414 BNL-NUREG-52487)

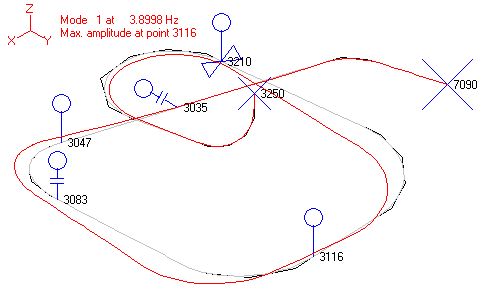

| Mode | NRC in Hz | PIPESTRESS in Hz |
| 1 | 3.8987 | 3.900 |
| 2 | 4.5660 | 4.565 |
| 3 | 8.3322 | 8.335 |
| 4 | 10.391 | 10.395 |
| 5 | 14.962 | 14.979 |
| 6 | 18.561 | 18.586 |
| 7 | 23.825 | 23.829 |
| 8 | 34.503 | 34.513 |
| 9 | 37.913 | 37.966 |
| 10 | 41.934 | 41.963 |
| 11 | 52.755 | 52.797 |
| 12 | 56.300 | 56.355 |
| 13 | 58.649 | 58.671 |

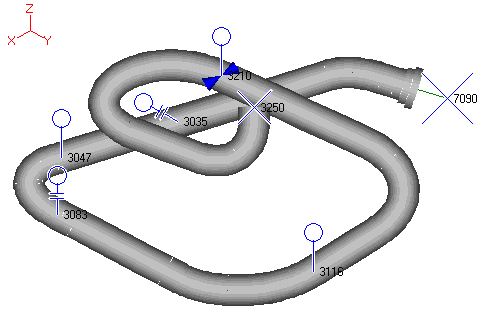

Actions of anchors and supports (floor response spectrum analysis)
| Point | Action of anchors and supports (FX-FY-FZ in LB and MX-MY-MZ in FT LB) NRC |
Action of anchors and supports (FX-FY-FZ in LB and MX-MY-MZ in FT LB) PIPESTRESS |
| 7090 | 11791 - 17977 - 6607 - 71372 - 58739 - 88083 | 11783 - 17989 - 6538 - 71543 - 58416 - 88871 |
| 3250 | 13911 - 18887 - 11456 - 98284 - 73908 - 63963 | 13865 - 18655 - 11412 - 97797 - 73970 - 64161 |
| 3035 | 0 - 30794 - 0 (no moments) | 0 - 30736 - 0 (no moments) |
| 3047 | 0 - 0 -69 (no moments) | 0 - 0 - 68 (no moments) |
| 3083 | 0 - 0 - 7412 (no moments) | 0 - 0 - 7427 (no moments) |
| 3116 | 0 - 0 - 314 (no moments) | 0 - 0 - 315 (no moments) |
| 3210 | 10684 - 0 -146 (no moments) | 10673 - 0 - 146 (no moments) |
 |
 |
